Specifications

The PixLink system is built for durability and long-term deployment in remote locations, making it ideal for a wide range of live streaming applications. Engineered with a rugged design, it can withstand harsh environmental conditions while delivering reliable performance. Designed to be powered by a battery and solar charging system, PixLink ensures continuous operation even in off-grid locations. Below are the system components that make PixLink a dependable solution for remote live streaming.

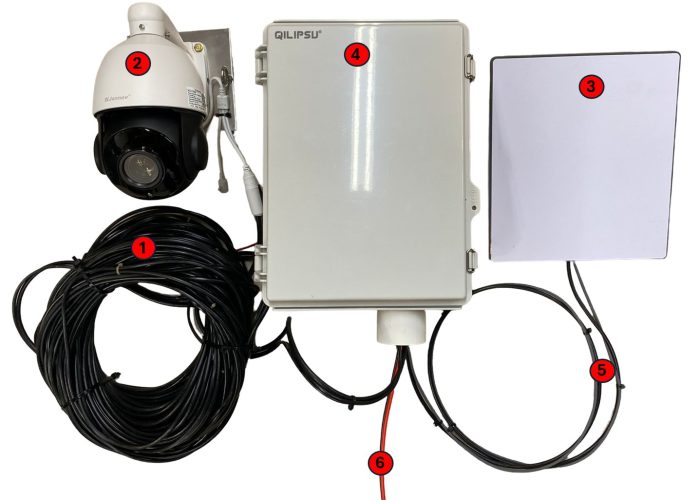

PixLink System Components

Product3
  1. 100′ Camera Cable – CAT 6 Outdoor Rated Ethernet Cable and 12V Power Cable
  2. 30X Optical Zoom Pan-Tilt-Zoom IP Camera with Color Day and 100M Night Vision IR w/ Mounting Hardward
  3. Starlink Mini Antenna
  4. PixLink Streaming Electronics
  5. 5′ Starlink Antenna Cable – CAT 6 Outdoor Rated Ethernet Cable and 12V
  6. 12V Solar/Battery External Power Cable

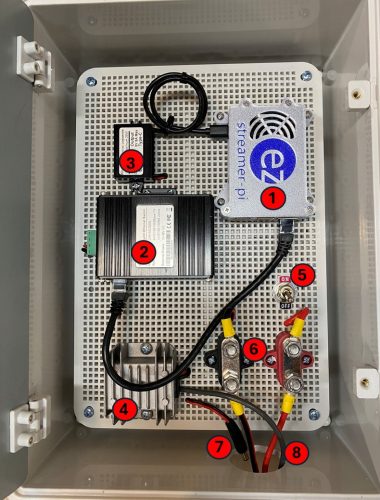

PixLink Streaming Electronics System Components

PixLinkStreamingComponents
  1. EZ Streamer-Pi Video Encoder
  2. 12V 5-port Network Switch
  3. DC-DC 12V to 5V Converter
  4. DC-DC 12V to 30V Converter
  5. Main Power Switch
  6. External Power Screw Terminals
  7. 2.1mm Male 12V Camera Power Connector
  8. 2.1mm Male 12V Starlink Power Connector

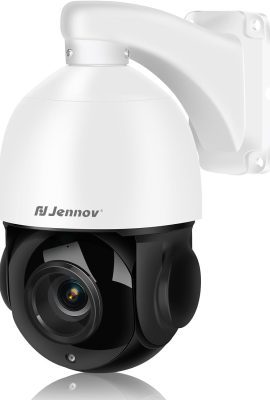

4K 8MP Outdoor Pan-Tilt-Zoom IP Camera

IPCam
  1. 8MP camera features ultra-high clarity of 4K Ultra HD
  2.  4.7~94mm motorized lens, 20X optical zoom & 10X digital zoom
  3. Automatically switch day/night mode through IR-cut
  4. 320ft Night Vision
  5. Robust aluminum with protection class IP66
  6. Pan 360 Deg, Tilt 90 Deg, Zoom 30 X
  7. Browser Control or using the Videolink APP from the App Store
  8. Max 256G SD card storage (card not included)
  9. Two Way Audio

EZ Streamer-Pi Live Streaming Video Encoder

  1. 24/7 Live Streaming, EZ Streamer-Pi is designed to live stream 24/7 indefinitely
  2. Supporting RTMP (Real-Time Messaging Protocol) and HTTP live streaming (HLS) Streaming Services
  3. Connect up to four IP Cameras at once
  4. Connect any IP camera with H.264 (AVC) and H.265 (HEVC) compression and supports RTSP protocol (Real-Time Messaging Protocol
  5. Keep Alive Feature, will sense these drops and stream a standby image until stream resumes
  6. Web App Interface for Configuration
